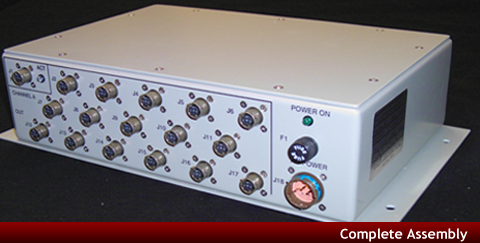

Signal Data Reproducer accepts two serial RS-422 inputs and generates sixteen (16) RS-422 outputs for each of the inputs.

It has an activity indicator for each of the input channels.

The unit provides overvoltage and current protection for each of the input and output connections.

Part Number:
A90160002M
Model No.:  RP-401A/UYH
NSN:  7025-LL-H7D-1330

Download pdf file
